HRV/ERV Solutions VS3000 RTe
- Download :
-
Catalog

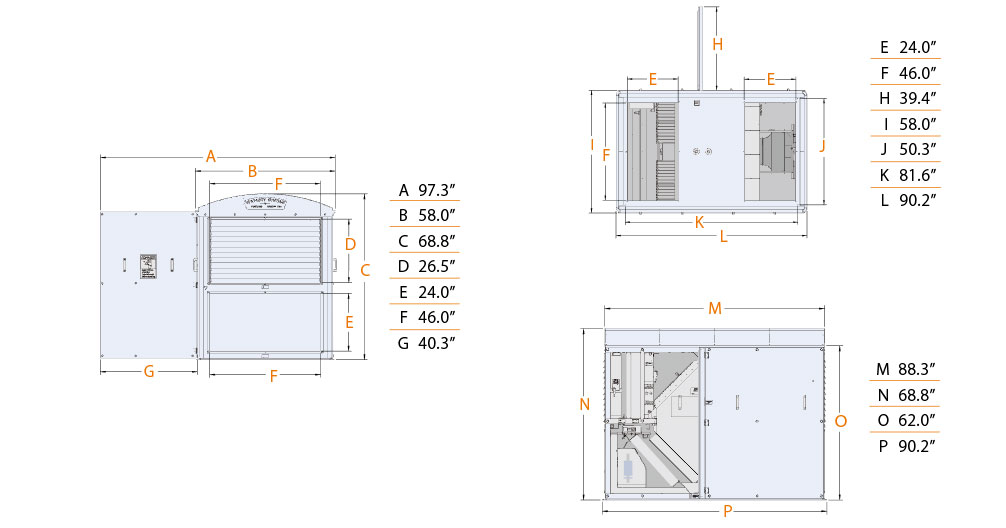

Dimensions
Parts
Feature
Port Configurations
Accessories
- Room CO2 Sensor*
- Duct CO2 Sensor*
- Smart Building Gateway
- *
- Only one per ventilator
PERFORMANCE
Exceptional energy efficiency performance puts the VS3000 RTe in a class by itself.
With its polymer counterflow heat exchanger core, the VS3000 RTe transfers 72-87% of the heat and 51-82% of the moisture between fresh and exhaust air streams.
Our fans incorporate electronically commutated motors (ECMs) and backward curving fan blades, reducing the power required for air movement.
FAN OPERATING RANGE
FAN VOLUME & POWER RANGE
| Ext. Static Pressure (in. W.C.) |
1.3 | 1.5 | 1.8 | 2.5 | 3 |
|---|---|---|---|---|---|
| Maximum Flow (CFM) | 3,300 | 3,200 | 3,000 | 2,500 | 2,000 |
| System Power (Watts) | 3,871 | 3,916 | 3,884 | 3,766 | 3,474 |
Scroll
LATENT EFFICIENCY
SENSIBLE EFFICIENCY
TOTAL EFFICIENCY
Specifications
| Ventilation Flow-Nominal | 3,300 cfm |
|---|---|
| Ventilation Flow – Typical | 750 to 3,000 cfm |
| Ventilation Type | Energy Recovery Ventilator (ERV) |
| Heat Exchanger | Counterflow Polymer Static Plate |
| Fan Type | Backward Curved, Centrifugal, EC |
| Heat Recovery – Max | Sensible – 87% Latent – 82% Total – 85% |
| Temperature Range | -13° F to 122° F |
| Humidity – Inside Max | 90% RH |
| Operation Modes | CAV, DCV, VAV, BMS, Economizer |
| Duct Connection | 22” Dia (380 in2) Min. |
| Discharge Air Temperature Control | Continuously Variable Bypass |
Mechanical
| Weight | 1,720 lbs |
|---|---|
| Shipping Weight | 2,186 lbs |
| Dimensions | 86.3” L x 48.3” W x 73.5” H |
| Shipping Dimensions | 92” L x 59” W x 83” H |
| OA PreFilter (Actual Size) | 51” x 26.5” x 1.75” MERV6 |
| OA Filter (Actual Size) | 51” x 26.5” x 3.75” MERV13 |
| RA Filter (Actual Size) | 51” x 25.25” x 3.75” MERV8 |
| Base Anchor Dimension | 36.8” x 73.7” |
| External Finish | Powder Coat Over Galvanized Steel |
Electrical
| Power Supply | 208 VAC | 480 VAC** |
|---|---|---|
| Phase | 3Φ | 3Φ |
| Power Supply | 20.2 kW | 25.6 kW |
| FLA – Max | 56 A | 36.8 A |
| MCA | 68.6 A | 44.6 A |
| MOP | 70 A | 60 A |
| De-Ice Preheater | 16.3 kW | 21.7 kW |
| Fan Motor Type | EC | |
| Maximum Power per Fan | 1.9 kW (2.56 hp) | |
- **
- Unit is supplied 480V power and must have a field supplied step-down transformer (required) for the internal electronic controls which operate at 208V.
