HRV/ERV Solutions VS1000 RT
- Download :
-
Catalog
Dimensions

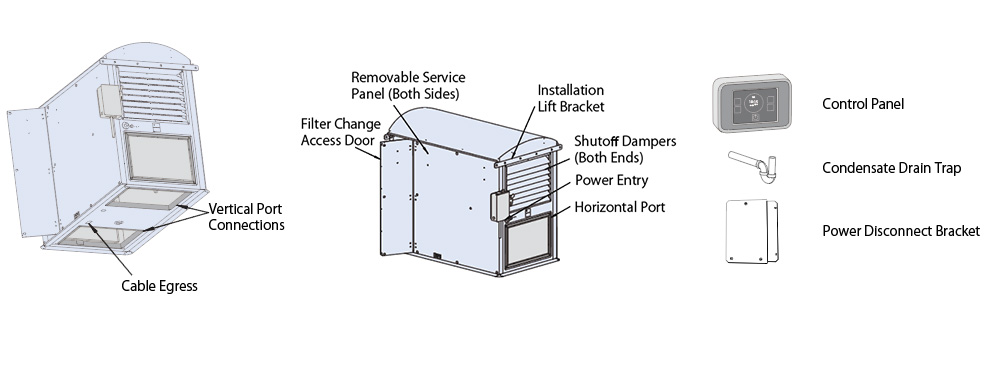

Parts
Feature
FAN VOLUME
| Ext. Static Pressure (in. W.C.) | 0.25 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 1.75 |
|---|---|---|---|---|---|---|---|
| Maximum Flow (CFM) | 1,060 | 1,060 | 1,000 | 970 | 970 | 830 | 735 |
| System Power (Watts) | 790 | 878 | 918 | 906 | 888 | 878 | 859 |
Scroll
FAN POWER*
| Air Flow (CFM) | 175 | 200 | 400 | 600 | 800 | 1,000 | 1,060 |
|---|---|---|---|---|---|---|---|
| CFM / WATT (2 Fans) | 3.5 | 3.6 | 4.3 | 3.3 | 2.2 | 1.6 | 1.5 |
| System Power (Watts) | 66 | 72 | 109 | 198 | 380 | 640 | 723 |
Scroll
- *
- at 1/8" water column
PERFORMANCE
Exceptional energy efficiency performance puts the VS1000 RT in a class by itself.
With its aluminum counterflow heat exchanger core, the VS1000 RT transfers 82% to 93% of the heat between fresh and exhaust air streams.
Our fans incorporate electronically commutated motors (ECMs) and backward curving fan blades, reducing the power required for air movement.

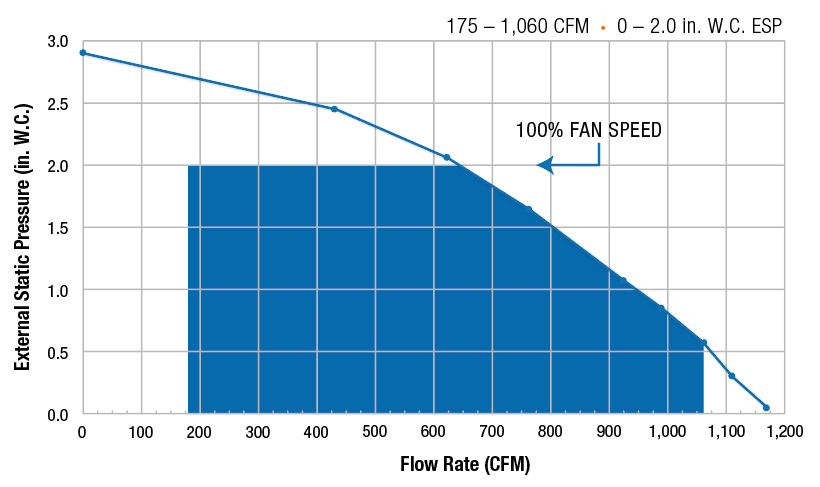

FAN OPERATING RANGE

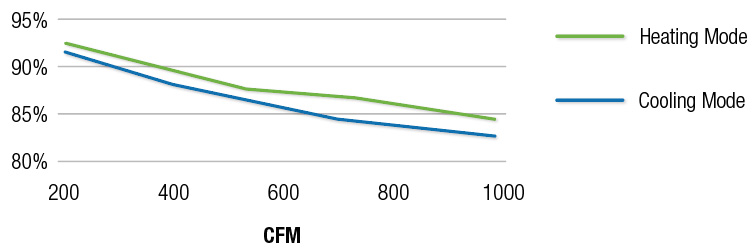

HEAT RECOVERY EFFICIENCY
PORT CONFIGURATIONS
ACCESSORIES
- Room CO2 Sensor
- Duct CO2 Sensor
- Room RH Sensor
- VOC Sensor
- Smart Building Gateway
Specifications
| Ventilation Flow – Max | 1,060 cfm |
|---|---|
| Ventilation Flow – Typical | 75 to 1,000 cfm |
| Ventilation Type | Heat Recovery Ventilator (HRV) |
| Heat Exchanger | Counterflow Aluminum Static Plate |
| Fan Type | Backward Curved, Centrifugal, EC |
| Heat Recovery – Max | 93% |
| Temperature Range | -13° F to 140° F |
| Humidity – Inside Max | 90% RH |
| Operation Modes | CAV, DCV, VAV, BMS, Economizer |
| Noise – Max | 52.6 dBA |
| NRTL Test Specifications | UL1812, CSA C22.2 No. 113 |
| Duct Connection (Room Air, Supply Air) |
None |
| Duct Connection (Outside Air, Exhaust Air) |
14" Dia. (154 in2) Min. |
| Temperature Control | Continuously Variable Bypass |
MECHANICAL
| Weight | 616 lbs |
|---|---|
| Shipping Weight | 845 lbs |
| Dimensions | 63.6" L x 35.2" W x 52.5" H |
| Shipping Dimensions | 74" L x 45" W x 51" H |
| OA Filter (Actual Size) | 17.5" L x 24.5" W x 3.75" H MERV13 |
| RA Filter (Actual Size) | 16.5" L x 24.5" W x 1.75" H MERV8 |
| Base Anchor Dimension | 26.3" x 52.8" |
| External Finish | Powder Coat Over Galvanized Steel |
ELECTRICAL
| Power Supply | 6.9 kW |
|---|---|
| Voltage | 240 VAC 1Φ, 208/240 VAC 3Φ, 60Hz |
| FLA – Max | 30 A (1Φ) |
| De-Ice Preheater | 6.0 kW |
| Fan Motor Type | EC |
| Maximum Power – 1 Fan | 485W (.65hp) |
