AIRSTAGE VRF Systems Optional Parts

For Duct type

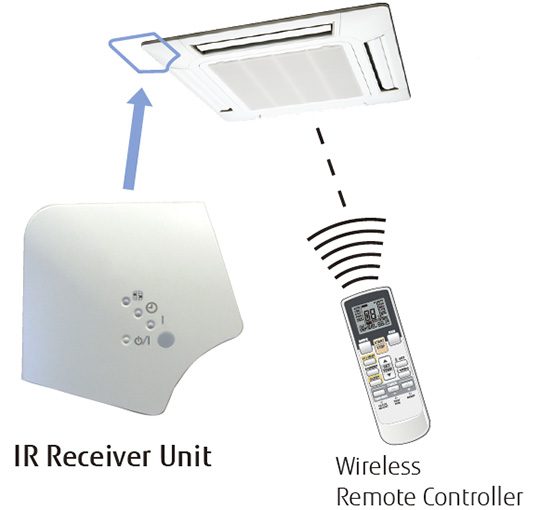

IR Receiver Unit

UTB-YWC

Flange

UTD-RF204 (Round)

Flange

UTD-SF045T (Square)

Remote Sensor Unit

UTY-XSZX

Long-Life Filter

UTD-LF25NA

For Medium Static Pressure Duct type

Long-Life Filter

UTD-LF60KA

For High Static Pressure Duct type

Auto Louver Grille Kit

UTD-GXTA-W

UTD-GXSA-W

Available for Slim Ducted Indoor Units

Auto Louver Grille Kit

UTD-GXTC-W

UTD-GXSB-W

Available for Slim Ducted Indoor Units

Drain Pump Unit

UTZ-PX1NBA

UTZ-PU1NBA

For Medium Static Pressure Duct type

For MP AHU type

Electric Heater Kit

Optional Heater Kit for Multi-Position Air Handling Units (ARUX Models) for AIRSTAGE J- and V-Series Lineup. The new heater kit offers additional/supplemental heating capacity ranging from 2 kW to 20 kW to suit most light commercial and residential applications.

Feature Highlights

Factory designed & approved Heater Kit
Factory designed & approved Heater Kit
Fits within the air handling unit
Up to 2 stages of heating, total of 20 kW
Improved aux heater control logic

Compatibility

This Electric Heater Kit is only compatible with respective multi-position air handling unit as shown in the table.

Model Name-MP AHU	Model Name-Electric heater kit
ARUX12TLAV2	UTZ-EU02MSA
ARUX12TLAV2	UTZ-EU04MSA2
ARUX18TLAV2	UTZ-EU03MSA
ARUX18TLAV2	UTZ-EU06MSA2
ARUX24TLAV2	UTZ-EU02MSA
	UTZ-EU04MSA
	UTZ-EU08MSA2
ARUX30TLAV2	UTZ-EU03MMA
	UTZ-EU05MMA
	UTZ-EU10MMA2
ARUX36TLAV2	UTZ-EU03MMA
	UTZ-EU06MMA
	UTZ-EU12MMA2
ARUX48TLAV2	UTZ-EU05MLA
	UTZ-EU08MLA
	UTZ-EU16MLA2
ARUX60TLAV2	UTZ-EU05MLA
	UTZ-EU10MLA
	UTZ-EU20MLA2

For Cassette type

Wide Panel

UTG-AKXA-W

UTG-AGYA-W

For Cassette type

Panel Spacer

UTG-BGYA-W

Air Outlet Shutter Plate

UTR-YDZB

For Compact Cassette type Shuts the air outlet when only using as 3 blow out.

Air Outlet Shutter Plate

UTR-YDZK

UTR-YDZC

Shuts the air outlet when only using as 3 blow out.

Insulation Kit For High Humidity

UTZ-KXRA

UTZ-KXGA

For Cassette type

Insulation Kit For High Humidity

UTZ-KXGC

UTZ-KXGB

For Slim Cassette type

Insulation Kit For High Humidity

UTZ-KXGC

For Compact Cassette type

Wireless Remote Controller

UTY-LRHYB1

Fresh Air Intake Kit

For Compact Cassette type

UTZ-VXAA

For Compact Cassette type

Fresh Air Intake Kit

For Cassette type

UTZ-VXRA

UTZ-VXGA

For Cassette type

For Ceiling type

Drain Pump Unit

UTR-DPB24T

UTZ-PU1EBA

For Outdoor Unit

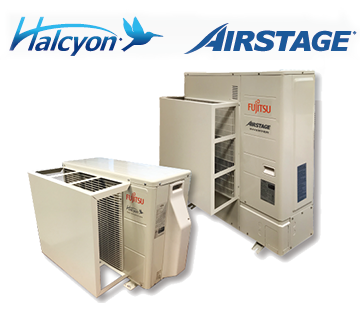

Wind Baffles ensure continued operation during high wind conditions, especially with roof-mounted units. Wind Baffles prevent nuisance stoppage of outdoor unit if wind gusts reverse fan rotation while the fan motor is off. They feature solid & sturdy design for durability and reduced vibrations, are the same color as the outdoor unit for better aesthetics and are easy to install.

NOTE:: Wind baffles do not extend low ambient cooling capacities.

Wind Baffles

UTZ-DUWBCA

UTZ-DUWBVWA

UTZ-DUWBYA

UTZ-DUWBUA

UTZ-DUWBG2A

UTZ-DUWBG3A

UTZ-DUWBTA

UTZ-DUWBRA

Prevent snow from accumulating inside the outdoor unit and causing performance issues. Get complete protection from all sides - all-in-one kit includes Front or Top, Side and Rear parts. Hoods are color matched, factory approved, and are shipped flat pack for easy field assembly.

Snow Hoods H-Series

UTZ-DUSHCA

UTZ-DUSHG2A

UTZ-DUSHG3A

UTZ-DUSHVA

UTZ-DUSHWA

UTZ-DUSHUA

UTZ-DUSHYA

UTZ-DUSHTA

Snow Hoods VRF

UTZ-DUSHUA

UTZ-DUSHTA

UTZ-DUSHRA

UTZ-DUSHVTA

UTZ-DUSHVUA

UTZ-DUSH1VLA

UTZ-DUSH2VLA

UTZ-DUSH3VLA

Hail guards ensure that the outdoor unit coil is protected from damaging hail. Engineered to prevent hail damage to coil at any angle. Paint matches outdoor unit. Factory designed.
