Specifications

Note :

Specifications are based on the following conditions.
Built-in protective functions may limit capacity or shut off unit if unit is operated outside of unit design operating temperature ranges.

Cooling :

Indoor temperature of 80°F(26.7°C)DB/67°F(19.4°C)WB,and outdoor temperature of 95.0°F(35°C)DB/75°F(23.9°C)WB.

Heating :

Indoor temperature of 70°F(21.1°C)DB/60°F(15.6°C)WB,and outdoor temperature of 47°F(8.3°C)DB/43°F(6.1°C)WB.

Pipe length :

25ft.(7.5 m), Height difference : 0ft.(0 m) (Outdoor unit - Indoor unit).

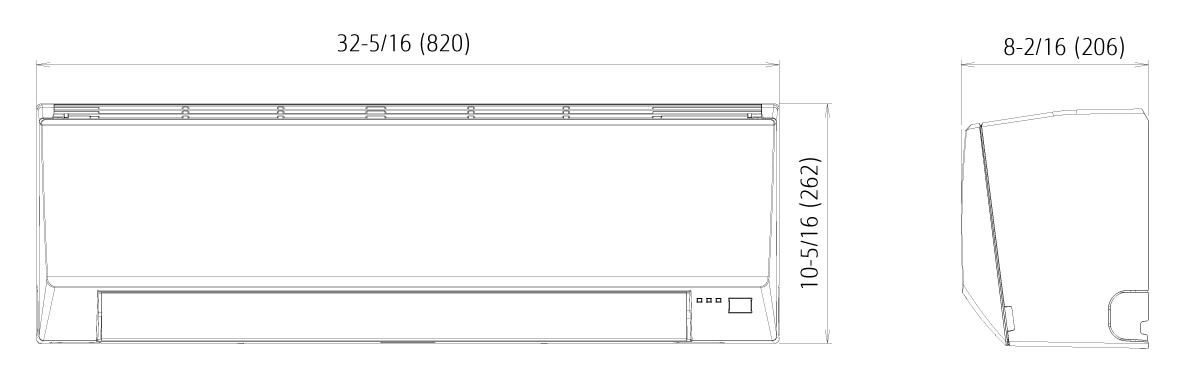

Dimensions

Models：ASUA4 / ASUA7 / ASUA9

Models：ASUA12 / ASUA14

High efficiency compact design

High efficiency compact design is achieved by mounting a high density and large heat exchanger.

The small chassis allows for flexible installation in tight spaces.

Improved airflow

Comfortable heating and cooling is provided by inclusion of a unique power diffuser.

More comfortable airflow

Comfortable air conditioning is provided by mounting a unique power diffuser.

Heating

Vertical airflow provides powerful floor level heating

*Power diffuser

Cooling

Horizontal airflow does not blow cool air directly at the occupants in the room.

*Power diffuser

Human sensor increases more energy saving

Energy saving operation starts automatically by detecting the motion of a person. 2 modes of save operation mode and stop mode can be selected.(ASUA12/14 only)

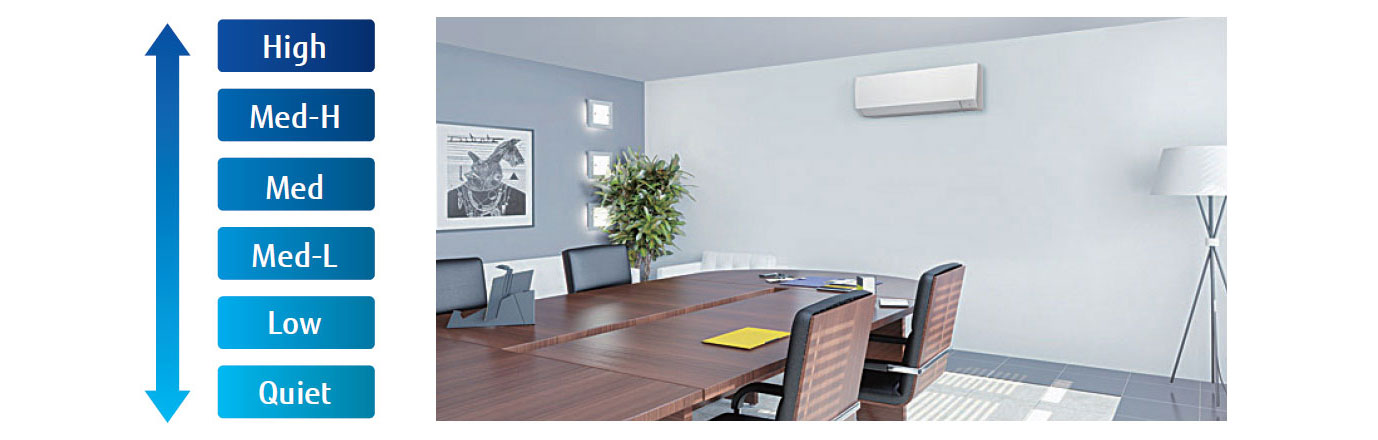

6 Fan Speed Control

Multistep airflow control suits any environment.

* Compatible Remote Controller is as follows :

UTY-RNRUZ5 / UTY-RSRY / UTY-RHRY / UTY-DCGY / UTY-DTGYZ1 / UTY-ALGXZ1 / UTY-APGXZ1

Fan speed :

Quiet

Low noise :

24 dB(A)
