Specifications

Note :

Specifications are based on the following conditions.
Built-in protective functions may limit capacity or shut off unit if unit is operated outside of unit design operating temperature ranges.

Cooling :

Indoor temperature of 80°F(26.7°C)DB/67°F(19.4°C)WB,and outdoor temperature of 95.0°F(35°C)DB/75°F(23.9°C)WB.

Heating :

Indoor temperature of 70°F(21.1°C)DB/60°F(15.6°C)WB,and outdoor temperature of 47°F(8.3°C)DB/43°F(6.1°C)WB.

Pipe length :

25ft.(7.5 m), Height difference : 0ft.(0 m) (Outdoor unit - Indoor unit).

Dimensions

Small living space available

• Installation space can be reduced down to minimum depth 1.48ft(450mm) height 0.65ft(198 mm) and compact design
• Minimum size: Depth 1.48ft(450mm), Height 0.65ft(198 mm) Volume 30% down compared with current model
• Lightweight: 2.2lb (16kg) 10%down

Optimum airflow path and low noise operation

Low noise is realized drastically by stabilized airflow design

at quiet mode :

20 dB(A)

Easy design and maintenance for drainage

Easy maintenance for drain pump.

Parts can be replaced from the side of the unit where maintenance is easier.

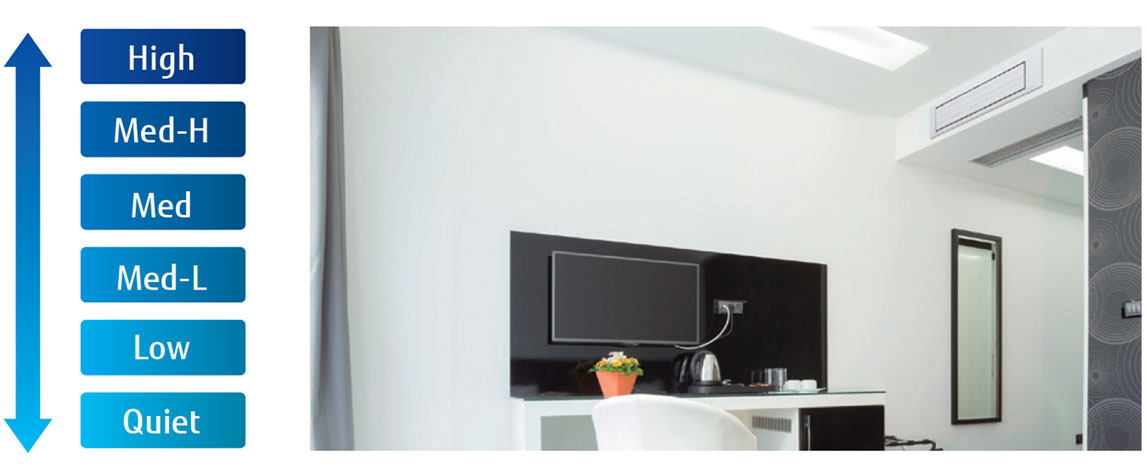

6-speed control

Multistep airflow speed control allows this model to install in a quiet location.

* Compatible Remote Controller is as follows :

UTY-RNRUZ5 / UTY-RSRY / UTY-RHRY / UTY-DCGY / UTY-DTGYZ1 / UTY-ALGXZ1 / UTY-APGXZ1

6-Step Speed

Auto Louver Grille Kit (Option)

• Thin design provides a comfortable living environment over a wide area.
• Automatic louver grille provides comfortable air conditioning all the way down to the floor and matches the interior design well. (Optional)

Optional parts

IR receiver unit :

UTB-YWC

Auto louver grille kit :

UTD-GXTA-W

Remote Sensor Unit :

UTY-XSZX
