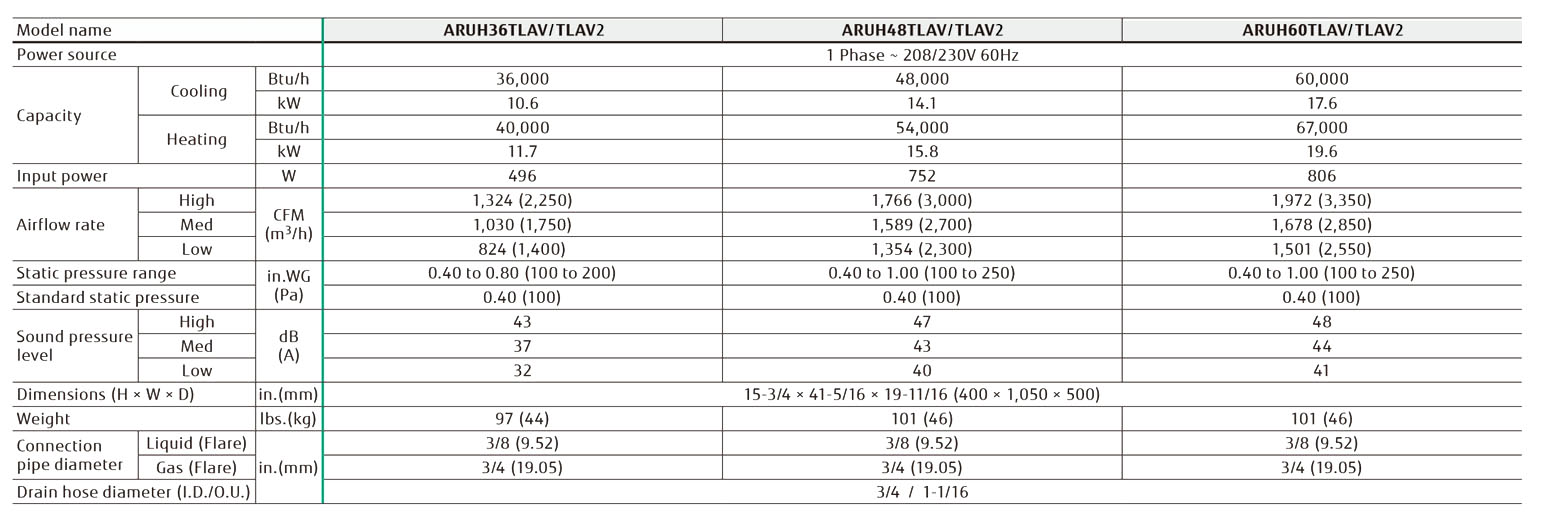

Specifications

Note :

Specifications are based on the following conditions.
Built-in protective functions may limit capacity or shut off unit if unit is operated outside of unit design operating temperature ranges.

Cooling :

Indoor temperature of 80°F(26.7°C)DB/67°F(19.4°C)WB,and outdoor temperature of 95.0°F(35°C)DB/75°F(23.9°C)WB.

Heating :

Indoor temperature of 70°F(21.1°C)DB/60°F(15.6°C)WB,and outdoor temperature of 47°F(8.3°C)DB/43°F(6.1°C)WB.

Pipe length :

25ft.(7.5 m), Height difference : 0ft.(0 m) (Outdoor unit - Indoor unit).

Dimensions

Easy installation (Compact size & Lightweight)

A compact and lightweight chassis has been developed to simplify installation and provide better flexibility for tight installation spaces.

Low noise

Indoor unit

Cutting off the corners has enabled less turbulent air flow. Low noise is realized by adopting a plastic case and a plastic fan.

Installation styles

Embedded in Ceiling

High static pressure design

Optional parts

Wired Remote Controller:

UTY-RNRUZ5

Simple Remote Controller:

UTY-RSRY, UTY-RHRY

Thermostat Converter:

UTY-TTRX

Wireless LAN Interface:

UTY-TFSXZ2

IR Receiver:

UTB-YWC or UTY-LBHXD

Remote Temperature Sensor:

UTY-XSZX

*Note, Duct models do not include a standard filter.
