AIRSTAGE™ SINGLE-ROOM SYSTEMS Large Ceiling

AIRSTAGE
Indoor Unit Systems: 36RSLX

Model

Cooling34,100 BTU/h
Heating36,500 BTU/h 		36RSLX

Features

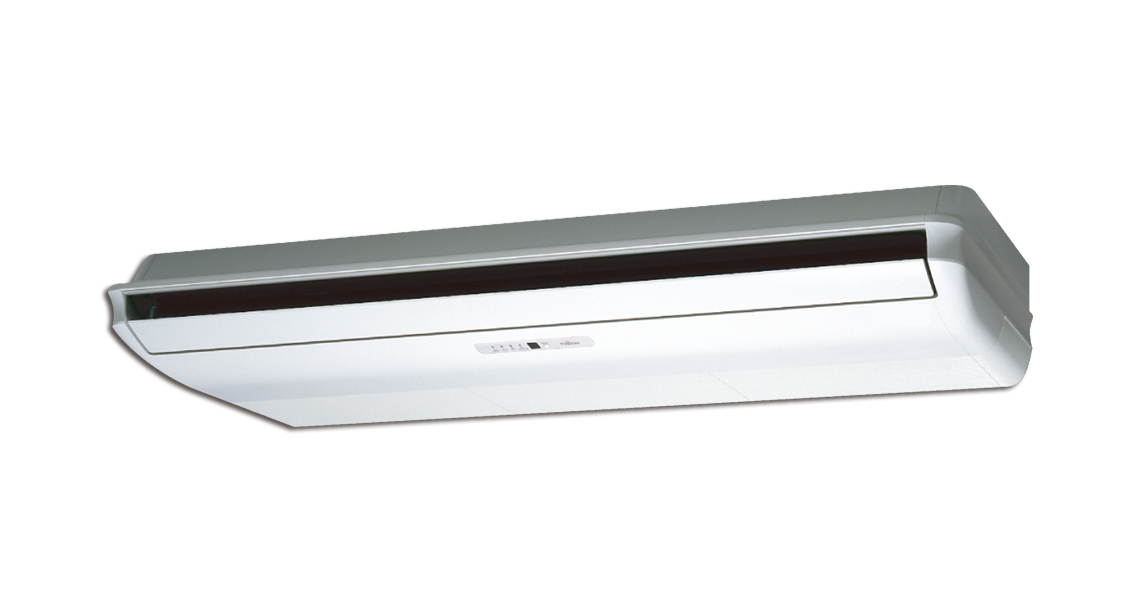

Fujitsu General's larger capacity ceiling-mounted system are elegant in design, quiet in operation and yet still pack a mighty cooling and heating punch. System 36RSLX is popular where fresh air intake and high capacity is required like in a restaurant or bar. It is also often suspended from a threaded rod and used in multiples to condition large warehouse spaces.

Inverter Technology

Through new, advanced technology, Inverter air conditioners are more economical to operate and quieter to run than conventional units. They can handle greater extremes in temperature, are smoother and more stable in operation, and reach the desired temperature more quickly than conventional air conditioners.

4-Way Auto Louver for Balanced Comfort

Airflow is automatically redirected left, right, up and down to provide a consistent temperature throughout a room.

Smart System: Auto Mode

When the system is initially turned on, the fan speed is HIGH to reach the set temperature as quickly as possible. The fan speed will automatically adjust downward as the room begins to reach the set temperature.

Humidity Control

This system features Dry Mode, which helps to control humidity levels, even when cooling may not be needed.

Fresh Air Intake

Outside air can be introduced by attaching field supplied flexible duct to fresh air knockouts. Fresh air connection kit is Fujitsu General part #KHRS940-25. (available through distributors)

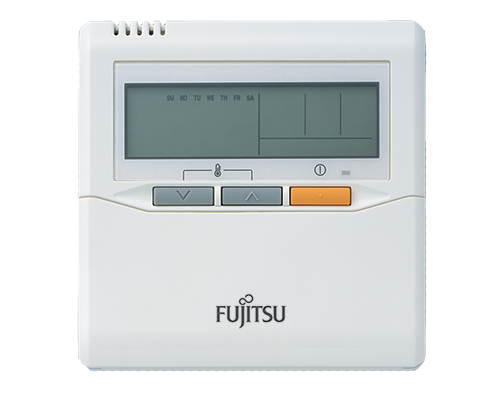

Wired Remote Controller UTY-RNBYU (Optional)

Features of the standard wired remote controller include:

  • Weekly timer
  • Set different on-off time by day
  • Set on-off time twice a day
  • Set time in 5 minute intervals
  • Child lock capable
  • Remote temperature sensor

Other Standard Features Include:

Sleep Timer: Automatically adjusts the temperature while you sleep to make you more comfortable.
Sleep Timer
24 Hour Timer: Allows for one on/off cycle during a 24 hour period.
24-Hour Timer
Auto Restart/Reset: Following a power failure, systems will automatically restart in the same operating mode as before, once power has been restored.
Auto Restart/Reset
Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored.
Auto Changeover
High Ceiling Mode: Temperature at the top of a high ceiling room may be warmer than the space occupied; this mode adjusts for this difference.
High Ceiling Mode
Cold Prevention: Indoor coil will warm prior to fan operating, preventing cold air during heating mode.
Cold Prevention
Low Ambient Cooling: Can operate in cooling mode even when outdoor ambient is 0°F, 14°F or 32°F, depending on model, without modification. Operation outside of factory specification is not recommended.
Low Ambient
