Accessories Wireless LAN® Device
Control Your Fujitsu General Mini-Split From Anywhere.
Remotely manage your mini-split system using a simple smartphone, tablet or PC via the Internet.
How does it work?
- The mini-splits are controlled from a webpage or using an iOS or Android APP in a very intuitive way.
- A wireless (wireless LAN®) device installed in each unit controls the operation.
- A Server in the cloud manages the whole process.
Features
- Turn the mini-split on before arriving home.
- Change the program if the user is arriving late.
- Know the current room temperature of your home.
- Check if the unit is still on once out of your home and turn it off.
- Program the mini-split with a calendar scheduler in an easy, intuitive way.
- Available in several languages. (Also °C and °F)
- Save money without losing comfort.
- Get instant alarm notifications.
IR Wireless Module
Model: FJ-IR-WIFI-1NA
For: Wall Mounted, Floor Mounted
Wired Module
Model: FJ-RC-WIFI-1NA
For: Cassette, Slim Duct, Ceiling, Universal
Model Compatibility
Compatibility for IR wireless LAN® Module
| Type | Indoor Unit Model |
IR wireless LAN® Module Model: FJ-IR-WIFI-1NA |
|---|---|---|
| Wall Mount (ASU) | 7,9,12RLF | Available |
| 7,9,12RLF1 | ||
| 9,12,15RLS2 | ||
| 9,12,15RLS3 | ||
| 18,24RLF | ||
| 18CL, 24CL1, 30, 36CLX1 | ||
| 30RLX | ||
| 18,24RLB, 30,36RLXB | ||
| 9,12RL2 | ||
| Floor Mount (AGU) | 9,12,15RLF | |
| Slim Duct (ARU) | 7,9,12,18,24RLF | Available, IR receiver required : UTY-LRHUM |
| Compact Cassette (AUU) | 7,9,12,18RLF | Available |
| Ceilling Cassette (AUU) | 18,24,36,42RCLX | N/A |
| Ceilling (ABU) | 36RSLX | Available |
| Universal (ABU) | 18,24RULX |
Scroll
Compatibility for Wired wireless LAN® Module
| Type | Indoor Unit Model | Wired wireless LAN® Module Model: FJ-RC-WIFI-1NA |
Required Parts |
Required Parts |
|||
|---|---|---|---|---|---|---|---|
| Interface Module | Plug Model : UTY-WIFI | UTY-RNNUM UTY-RVNUM |
UTY-RNBYU | UTY-RSNUM | |||
| Wall Mount (ASU) | 7,9,12RLF | Available | UTY-XCBXZ2 | Required | Available | N/A | Available |
| 7,9,12RLF1 | |||||||
| 9,12,15RLS2 | UTY-TWBXF1 | ||||||
| 9,12,15RLS3 | |||||||
| 18,24RLF | Not Required | ||||||
| 18CL, 24CL1, 30, 36CLX1 | N/A | Available | N/A | ||||
| 30RLX | |||||||
| 18,24RLB, 30,36RLXB | Available | N/A | Available | ||||
| 9,12RL2 | Not Available | Not Available | |||||
| Floor Mount (AGU) | 9,12,15RLF | Available | N/A | Required | Available | N/A | Available |
| Slim Duct (ARU) | 7,9,12,18,24RLF | Not Required | |||||
| Compact Cassette (AUU) | 7,9,12,18RLF | ||||||
| Ceilling Cassette (AUU) | 18,24,36,42RCLX | N/A | Available | N/A | |||
| Ceilling (ABU) | 36RSLX | ||||||
| Universal (ABU) | 18,24RULX | ||||||
Scroll
* Both wireless and wired wireless LAN® modules have a 2 year warranty from date of installation.
Specifications
IR Wireless Module FJ-IR-WIFI-1NA
| Enclosure | ABS (V-0, 5VB). 2,1mm thickness PC (V-2). 1 mm thickness |
|---|---|
| Dimensions | 81×78×28mm |
| Weight | 76g |
| Colour | White |
| Power supply | 5VDC 0,2 A NEC Class 2 or Limited Power Source (LPS) and SELV rated Power supply |
| Mounting | Wall |
| LED indicators | 1×Device status |
| Operating Temperature | From 0°C to 40°C |
| Operating humidity | <93 HR, no condensation |
| Stock humidity | <93% HR, no condensation |
| RoHS conformity | Compliant with RoHS directive (2002/95/CE). |
| Certifications | CE conformity to EMC directive (2004/108/EC) and Low-voltage directive (2006/95/EC)
|
Scroll
Wired Module FJ-RC-WIFI-1NA
| Enclosure | ABS(V-0,5VB).2,1mm thickness PC (V-2).1mm thickness |
|---|---|
| Dimensions | 81×78×28mm |
| Weight | 76g |
| Colour | White |
| Power supply | 5VDC 0,2 A NEC Class 2 or Limited Power Source (LPS) and SELV rated Power supply |
| Mounting | Wall |
| LED indicators | 1×Device status |
| Operating Temperature | From 0°C to 40°C |
| Operating humidity | <93 HR, no condensation |
| Stock humidity | <93% HR, no condensation |
| RoHS conformity | Compliant with RoHS directive (2002/95/CE). |
| Certifications | CE conformity to EMC directive (2004/108/EC) and Low-voltage directive (2006/95/EC)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
|
Scroll
Dimensions
IR Wireless Module FJ-IR-WIFI-1NA

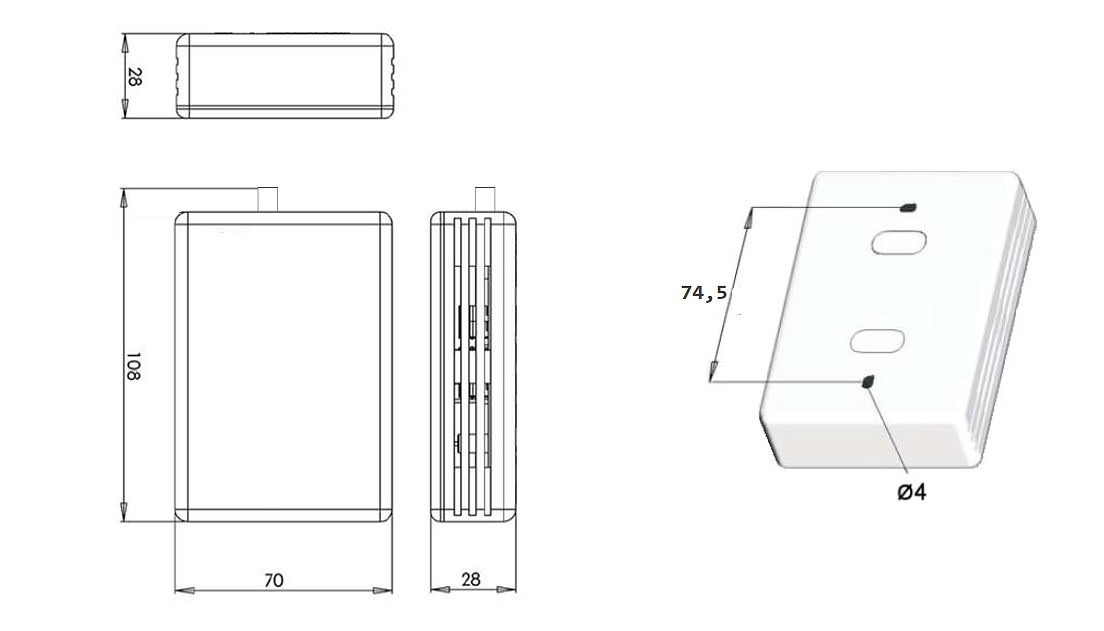

Wired Module FJ-RC-WIFI-1NA
- *
- "FGLair" is a trademark of FUJITSU GENERAL LIMITED.
- *
- The company names and brand names referred to in this page are themselves the trademarks, registered trademarks, and products of the respective companies.
- *
- Screens, figures and movies are only for explanation.
