AIRZONE
Compatible with most Airstage, 2-wire and 3-wire single zone systems.
WHAT IS AIRZONE?
Airzone is an intelligent, communicating zoning system for Airstage ducted indoor units, featuring proportional,
modulating dampers and smart controllers. Additional ductless and ducted single zone systems may be integrated for total HVAC control.
HOW DOES IT WORK?
All Airzone dampers and optional Zone Modules are connected by a 4-wire cable, for power and communication. Dampers are positioned to provide optimum airflow into a zone based upon demand monitored through zone controllers. The indoor unit fan is adjusted to meet the instantaneous sum of all calling zones.
Airzone VAF Wired Blueface Principal Controller White
Airzone VAF Control Board with Fujitsu UART Communication Region 2

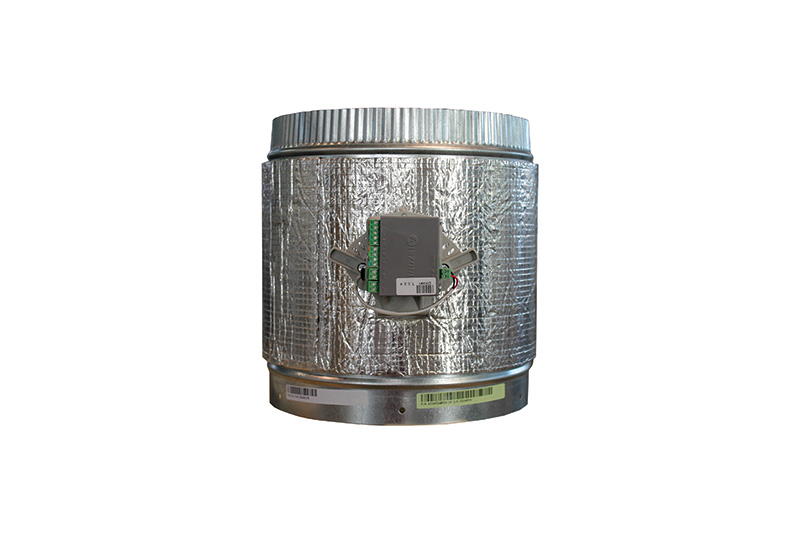

Airzone VAF 8” Wired Intelligent Round Damper

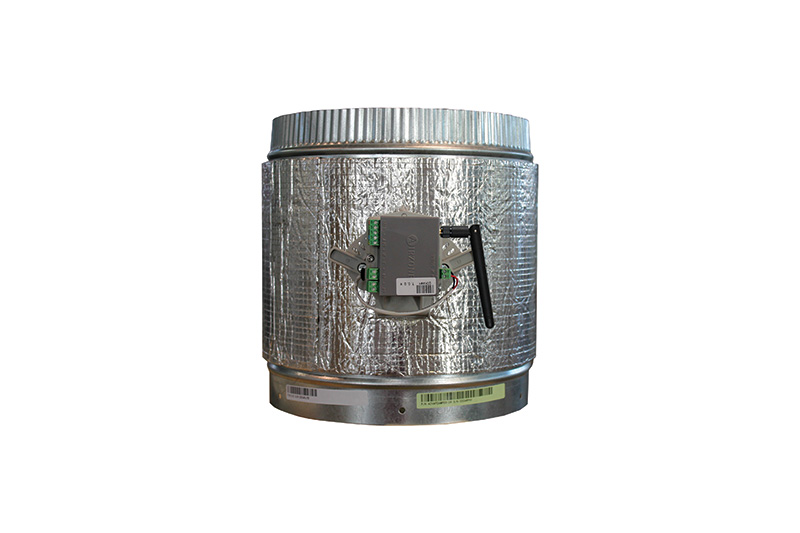

Airzone VAF 8” Wireless Intelligent Round Damper
BENEFITS
- An Airzone system can provide optimum airflow into each zone, thus reducing excess equipment capacity.
- Provides ideal temperature control of each zone in your home or office.
- Built in communication gateways maximize Fujitsu Heat Pump inverter efficiency.
- Integrate single zone systems with the ducted, modulating damper system.
- Modulating dampers and proportional fan control eliminates the need for a bypass duct!
- Flexibility of selection damper size and controllers individually for wide range of application.
FEATURES
- Control and monitor up to 10 individual zones.
- Adjustable minimum and maximum damper positions.
- Control of optional auxiliary heat of the ducted, zoned unit.
- Blueface Principal controller provides simple, single point temperature management of ALL zones!
- Wired and wireless dampers available. Size ranges from 6” to 14” in diameter.
- Flexible control up to 10 hyrdonic zones, as either primary or auxiliary heat.
- Dry Contact Inputs from occupancy sensor and windows operation to open/close the damper.
CONNECTION DIAGRAM
APPLICATION
Residential Application - Airzone VAF permits to apply an integrated zoning control for the whole house and combined with Radiant Heating elements and Electrical Auxiliary Heating.
Commercial Application- Wide range of damper sizes both wired and wireless allows implementing into lite commercial projects easier.
| PRODUCT OFFERING | ||
|---|---|---|
| FAMILY | REFERENCE VAF | DESCRIPTION |
| Control board | AZVAFR2FU2 | Airzone VAF Control Board With Fujitsu Uart Communication Region 2 |
| AZVAFR2FUJ | Airzone VAF Control Board With Fujitsu 3-Wire Communication Region 2 | |
| Controllers | AZVAFBLUEFACECB | Airzone VAF Wired Blueface Principal Controller White |
| AZVAFTHINKCB | Airzone VAF Wired Think Controller White | |
| AZVAFTHINKRB | Airzone VAF Wireless Think Controller White | |
| AZVAFLITECB | Airzone VAF Wired Lite Controller White | |
| AZVAFLITERB | Airzone VAF Wireless Lite Controller White | |
| Zone modules | AZVAFZMFU2C | Airzone VAF Wired Zone Module With Uart Fujitsu Communication |
| AZVAFZMFUJC | Airzone VAF Wired Zone Module With 3-Wire Fujitsu Communication | |
| AZVAFZMFU2R | Airzone VAF Wireless Zone Module With Uart Fujitsu Communication | |
| AZVAFDAMPER06C | Airzone VAF 6” Wired Intelligent Round Damper | |
| AZVAFDAMPER08C | Airzone VAF 8” Wired Intelligent Round Damper | |
| AZVAFDAMPER10C | Airzone VAF 10” Wired Intelligent Round Damper | |
| AZVAFDAMPER12C | Airzone VAF 12” Wired Intelligent Round Damper | |
| AZVAFDAMPER14C | Airzone VAF 14” Wired Intelligent Round Damper | |
| AZVAFDAMPER06R | Airzone VAF 6” Wireless Intelligent Round Damper | |
| AZVAFDAMPER08R | Airzone VAF 8” Wireless Intelligent Round Damper | |
| AZVAFDAMPER10R | Airzone VAF 10” Wireless Intelligent Round Damper | |
| AZVAFDAMPER12R | Airzone VAF 12” Wireless Intelligent Round Damper | |
| AZVAFDAMPER14R | Airzone VAF 14” Wireless Intelligent Round Damper | |
| AZVAFZMRADC | Airzone VAF 10” Wireless Intelligent Round Damper | |
| AZVAFDAMPER12R | Airzone VAF Wired Only Radiant Zone Module | |
| AZVAFZMRADR | Airzone VAF Wireless Only Radiant Zone Module | |
| Zone-supplemental heating | AZVAF5OUTPUTS | Airzone VAF Relay Radiant Heat Control Module |
| Accesories | AZVAF10KPROBE | Airzone VAF 10 Kohm Ntc Thermistor |
| AZVAFPOWER | Airzone VAF Additional 12v Power Supply | |
| AZX6WSPHUB | Airzone Webserver Hub | |
| Spare parts | AZVAFDAMPERZMC | Airzone VAF Spare Damper Wired Zone Module |
| AZVAFDAMPERZMR | Airzone VAF Spare Damper Wireless Zone Module | |
| AZVAFDAMPERACT | Airzone VAF Spare Damper Actuator | |
- *
